Thermoplastic polyolefin self-adhesive waterproof membrane
Part number:Thermoplastic Polyolefin Self-adhesive Waterproof MembraneSpecification:Width:2.0m ,Length:20m or customizedStandard:Q/XRY036
We're here to help: Easy ways to get the answers you need. SEND EMAIL GET PRICE DOWNLOAD
Share with :

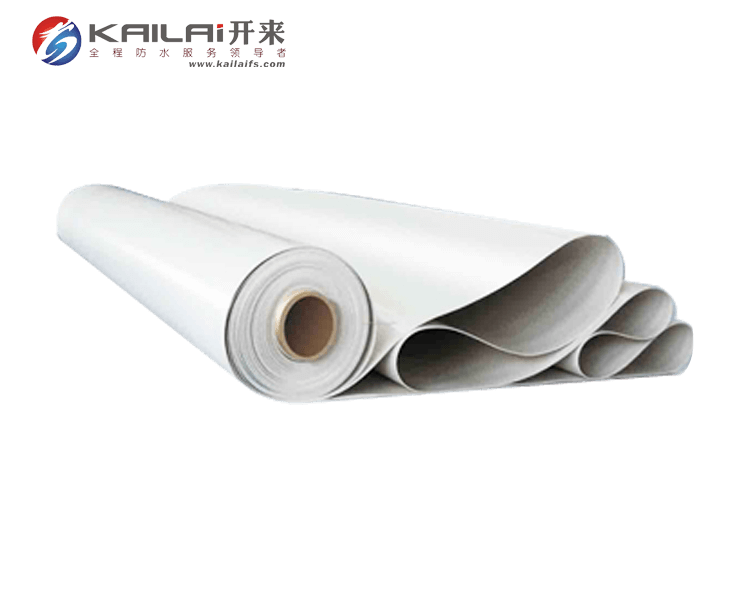

Description Kailai thermoplastic polyolefin (TPO) Self-adhesive Waterproof Membrane is made from polymer (TPO) sheet coated with non asphalt self-adhesive compound,filmed with isolating membrane,processed into the new waterproof membrane,it include the advantages of both Polymer and self-adhesive waterproof membrane,it improved the property of penetration resistance,weather resistance,self-health,high&low-temperature resistance,physical properties is much better, chemical property is more stability.
Classified:
- H- Homogeneous PVC membrane
- L- PVC membrane with fabric backing
- P- Reinforced with polyester felt
-Color:Black,White,Green,Blue,Yellow and etc. Bicolourable could be customized
-Width:2.0m
-Length:20m or customized
-Thickness:1.2mm,1.5mm,1.8mm,2.0mm
Other specification could be customized.
Feature (1)One waterproofing ,two proofing,the waterproofing is more reliability
(2)The joint could be integrated by hot-air welding,reliable and long term weldability.
(3)The waterproof performance will not be influenced by main body structure settlement,effectively prevent seepage flow of underground water.
(4)Wet-laid,empty-laid,mechanically fastened,hang-laid and etc could be applied on different construction field,construction is more flexible.
(5)Could be applied on cast-in-situ reinforced concrete without protective film.
(6)Strength chemical resistance,alkali solution kerosene resistance,mildew resistance.
(7)High tensile strength,tear resistance and impact resistance,good self-healing performance.
(8)cold construction,no fire, non-toxic and tasteless,environmental protection,no fading and pollution.
(9) Durable hot welding performance and easy to repair
Technical Index
NO |
Test Item |
Technical Index |
|
1 |
Pull(N/50mm) ≧ |
800 |
|
2 |
Membrane elongation at break,% ≧ |
450 |
|
3 |
Nail tear resistance / N ≧ |
500 |
|
4 |
Tear resistance, N/mm ≧ |
60 |
|
5 |
Impact property |
Diameter(10±0.1)mm,no leakage |
|
6 |
Static loads |
20kg,no leakage |
|
7 |
Heat resistance |
70 ℃,2h,no displacement,no flowing,no dripping |
|
8 |
Cold bending |
-25℃ no crack |
|
9 |
Anti-fluid-water |
0.6Mpa,no leakage |
|
10 |
Peeling strength with Post pouring concrete, N/mm |
No treament |
2 |
Surface contaminated by cement |
1.5 |
||
Surface contaminated by sediment |
1.5 |
||
Ultraviolet aging |
1.5 |
||
Thermal ageing |
1.5 |
||
11 |
Peeling strength with Post pouring concrete wetting, N/mm |
1.5 |
|
12 |
Mechanical property on joint |
Shear strength N/50mm ≧ |
500 or specimens damage |
Peeling strength N/mm ≧ |
1.2 |
||
13 |
Alkali resistance( saturation Ca(OH)2 solution, Room tp168h) |
Strength retention % ≧ |
90 |
Elongation retention % ≧ |
80 |
||
Cold bending |
-25℃, no crack |
||
14 |
Thermal ageing(70℃,168h) |
Strength retention % ≧ |
90 |
Elongation retention % ≧ |
80 |
||
Cold bending |
-18℃, no crack |
Application Range
