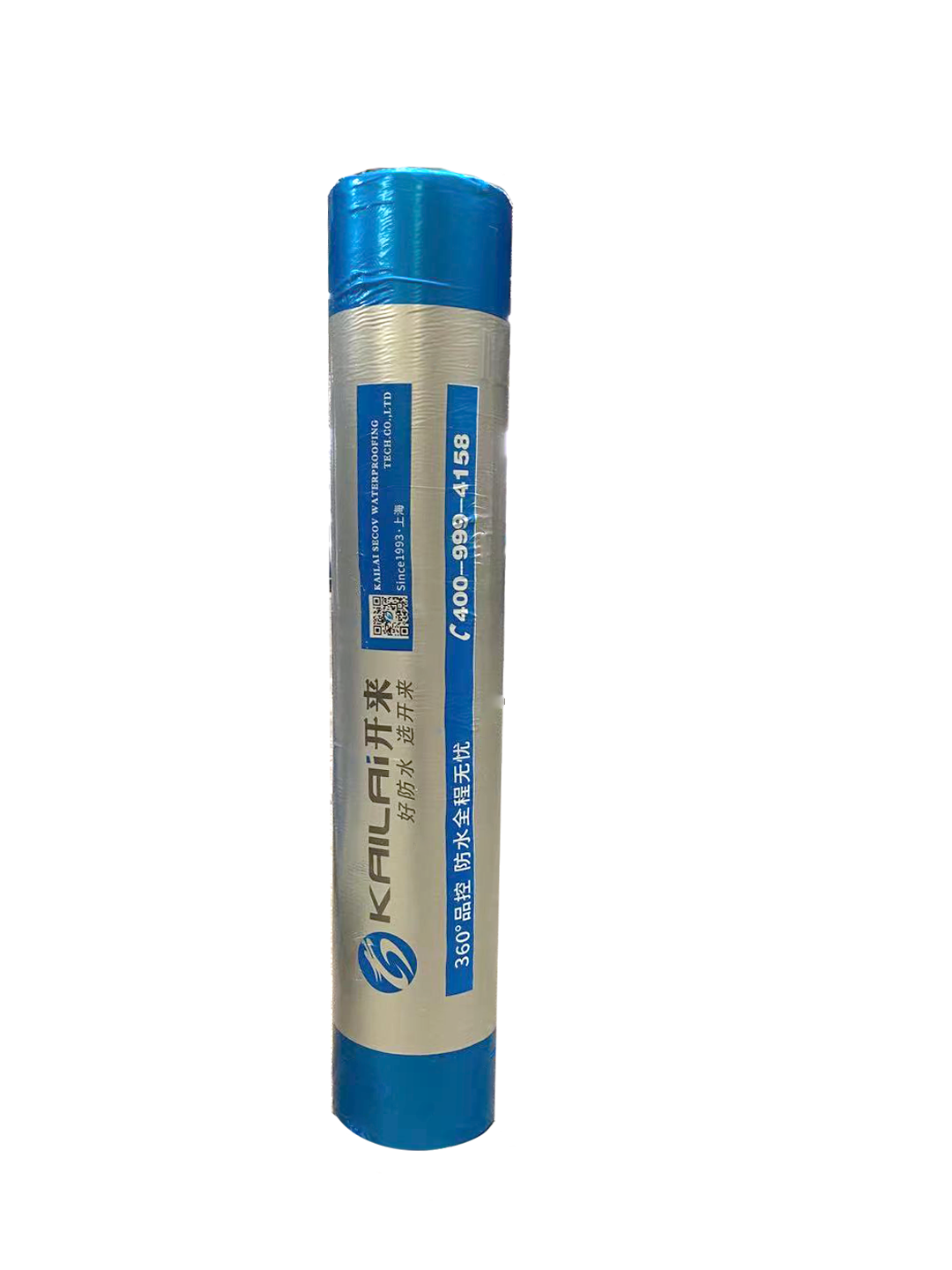

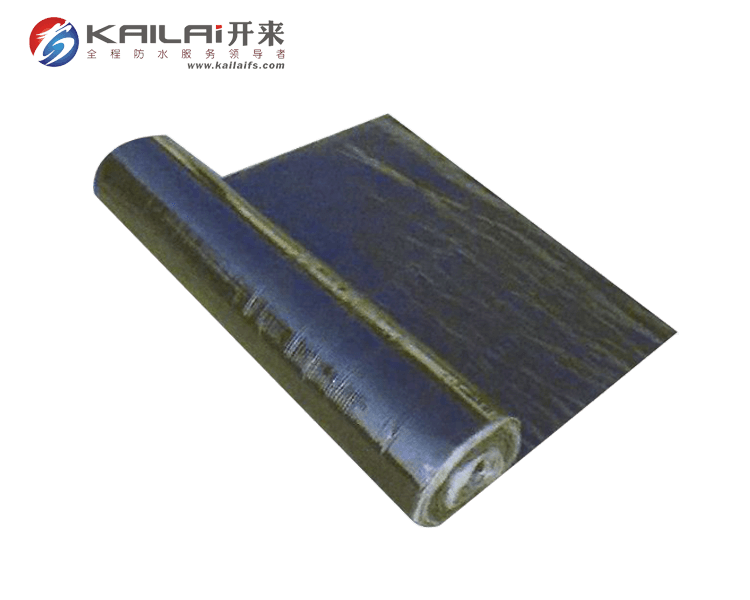

KLAI-102 Self-adhesive polymer modified bituminous waterproof membrane

Home > products > Modified bitumen waterproof membrane>KLAI-102 Self-adhesive polymer modified bituminous waterproof membrane

Part number:KLAI-102 Self-adhering polymer modified bituminous waterproof sheetsSpecification:width:1000mm Length:10m,15m,20m,30mStandard:GB23441

We're here to help: Easy ways to get the answers you need. SEND EMAIL GET PRICE DOWNLOAD

Share with :

Description Kailai Self-adhesive polymer modified bituminous waterproof coiled material is composed of base material, including synthetic rubber like SBS, good heavy-duty road asphalt. The surface is coated by PE film, fine sand,aluminum foil film,and the silicon depositing release film or crepe paper is covered on the lower surface as anti-sticking layer.

-Classified by filler base: without filler(N),Polyester filler (PY)
-N lassified by upper surface isolation materials: Polyethylene film (PE), Polyester film (PET) and Double-sided self-adhered without film (D).
·PY Classified by upper surface isolation materials: Polyethylene film (PE),Fine sand (S) and Double-sided self-adhered without film (D).
·Classified by the physical and mechanical properties:Type Ⅰ and Type Ⅱ .
*Width :1000mm
*Length:10m,15m, 20m,30m.
*Thickness:-N:1.2mm,1.5mm,2.0mm
-PY:2.0mm,3.0mm,4.0mm

Feature 1)Excellent flexibility elongation,strong adaptability for substrate shrinkage, deformation and cracks;
2)Available for wet ground,low requirement for basic level,short construction period.
3)Lasting bonding and sealed performance;
4)Excellent adhesive properties, ,self adhesive joints with coil with life;
5)Strong self healing ability for penetration and cracks;
6)Excellent adhesive performance guarantees the integrity of waterproof layer,so as to prevent the occurrence of water channeling phenomenon
7)Safe application for low temperature,no pollution.

Technical Index

Type N (without base)

NO	Test Item		Technical Index
			PE		PET		D
			Ⅰ	Ⅱ	Ⅰ	Ⅱ
1	Tensile property	Pull(N/50mm) ≧	150	200	150	200
		Elongation Max /% ≧	200		30		-
		Asphalt break elongation /%	250		150		450
2	Nail tear resistance / N ≧		60	110	30	40	-
3	Heat resistance		70 ℃ sliding less than 2mm
4	Low temperature flexibility / ℃		-20	-30	-20	-30	-20
			No crack
5	Peel strength (N/mm)	Membrane and aluminium sheet	1.0
		Membrane and aluminium sheet	1.5
6	Persistent adhesivity / min ≧		20

Type PY (with polymer base)

NO	Test Item			Technical Index
				Ⅰ	Ⅱ
1	Soluble content(g/m2)		2mm	1300	-
			3mm	2100
			4mm	2900
2	Tensile property	Pull(N/50mm) ≧	2mm	350	-
			3mm	450	600
			4mm	450	800
		Elongation Max /% ≧		30	40
3	Heat resistance			70 ℃,no flowing,no dripping
4	Low temperature flexibility / ℃			-20	-30
				No crack
5	Peel strength (N/mm)	Membrane and aluminium sheet		1
		Membrane and aluminium sheet		1.5
6	Persistent adhesivity / min ≧			15
7	Self-adhering asphalt re-peel strength (N/mm)			1.5

Application Range

(1)(PE)Self-adhering polymer modified bituminous waterproof sheets is widely used for
* non exposed level, underground and indoor engineering;
*cut-and-cover metro,tunnel,pool,canal and etc.
*Especially in the waterproof engineering can not use open flame.
(2)The upper surface which is coated by aluminum foil film and fine sand is widely used for exposed waterproof engineering.
(3)Double-sided self-adhered sheet is widely used for pre-laid and assistant waterproof,
It can also compound with variety of materials to form multiple waterproof system.
